摘自论文摘要
In training, Random Erasing randomly selects a rectangle region in an image and erases its pixels with random values. In this process, training images with various levels of occlusion are generated, which reduces the risk of over-fitting and makes the model robust to occlusion. Random Erasing is parameter learning free, easy to implement, and can be integrated with most of the CNN-based recognition models.

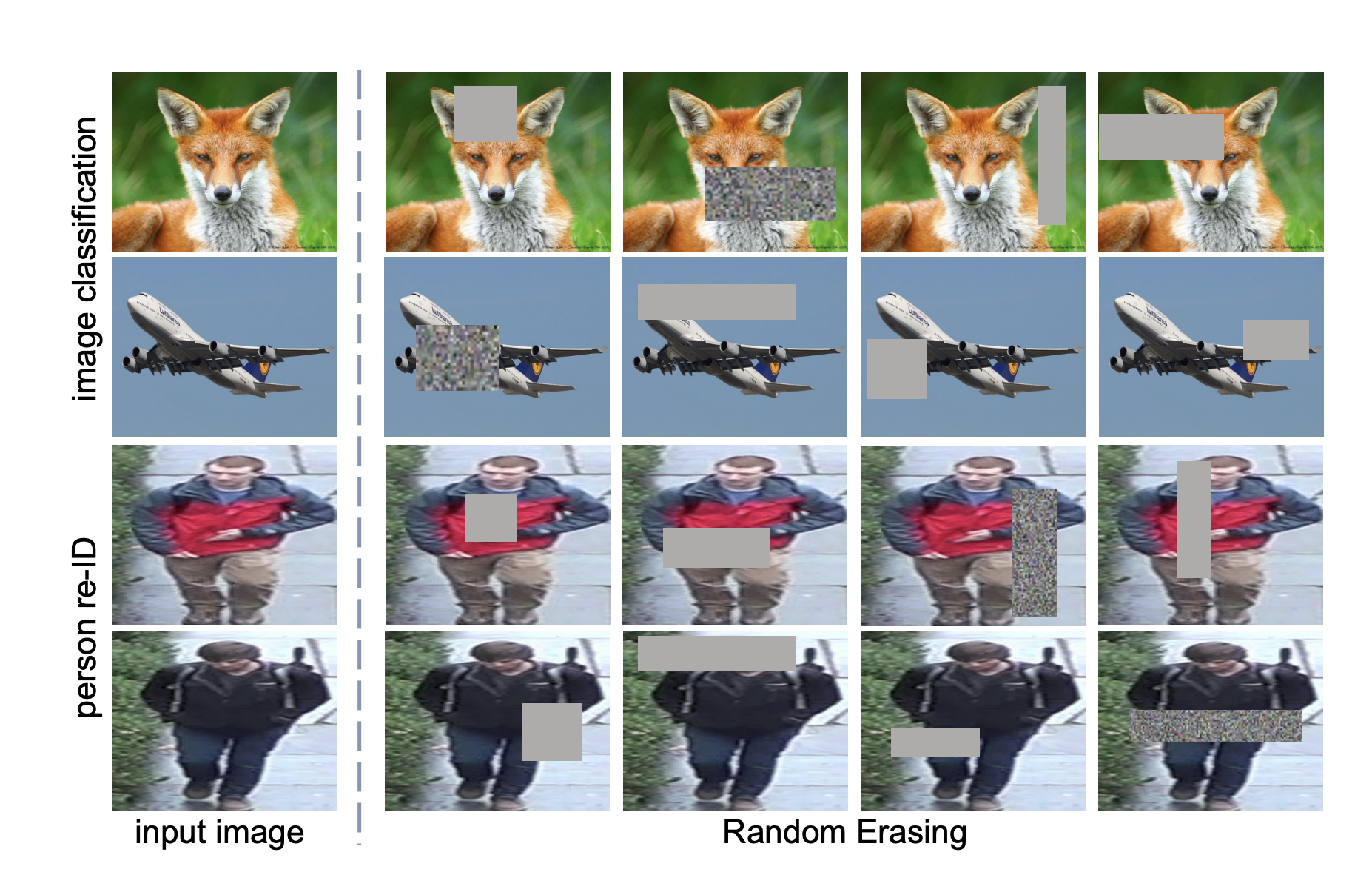

从上图可以看出，这种 RandomErase 数据增强随机选择输入图像中的一个区域，擦除该区域中的现有图像，并用随机值填充该区域。
要使用 timm 的训练脚本并使用 RandomErase 数据增强来训练模型，只需添加带有概率值的 --reprob 标志。
python train.py ../imagenette2-320 --reprob 0.4
运行上述命令将以 0.4 的概率对输入图像应用 RandomErase 数据增强。
第 1.1 节提供了使用 timm 训练脚本通过 RandomErase 数据增强训练神经网络的示例。但您通常可能只想在自己的自定义训练循环中使用 RandomErase 数据增强。本节解释了如何实现这一点。
timm 中的 RandomErase 数据增强是在 RandomErasing 类中实现的。下面的代码所做的只是首先创建一个输入图像张量并将其可视化。
注意：这种 RandomErasing 变体旨在应用于通过数据集均值和标准差归一化后的批量或单个图像张量。这与
RandAugment 不同，后者类期望 PIL.Image 作为输入。from PIL import Image
from timm.data.random_erasing import RandomErasing
from torchvision import transforms
from matplotlib import pyplot as plt
img = Image.open("../../imagenette2-320/train/n01440764/ILSVRC2012_val_00000293.JPEG")
x = transforms.ToTensor()(img)
plt.imshow(x.permute(1, 2, 0))
很好，正如我们所见，它是文档中几乎所有地方都展示的“丁鳜”图像。现在让我们应用 RandomErasing 增强并可视化结果。
random_erase = RandomErasing(probability=1, mode='pixel', device='cpu')
plt.imshow(random_erase(x).permute(1, 2, 0))
正如我们所见，应用 RandomErasing 数据增强后，图像内部一个随机大小的正方形已被替换为随机值，如论文中所述。因此，在您的自定义训练脚本中使用 RandomErasing 的伪代码如下所示：
from timm.data.random_erasing import RandomErasing
# get input images and convert to `torch.tensor`
X, y = input_training_batch()
X = convert_to_torch_tensor(X)
# perform RandomErase data augmentation
random_erase = RandomErasing(probability=0.5)
# get augmented batch
X_aug = random_erase(X)
# do something here
在本节中，我们将查看 timm 中 RandomErasing 类的源代码。该类的完整源代码如下所示：
class RandomErasing:
""" Randomly selects a rectangle region in an image and erases its pixels.
'Random Erasing Data Augmentation' by Zhong et al.
See https://arxiv.org/pdf/1708.04896.pdf
This variant of RandomErasing is intended to be applied to either a batch
or single image tensor after it has been normalized by dataset mean and std.
Args:
probability: Probability that the Random Erasing operation will be performed.
min_area: Minimum percentage of erased area wrt input image area.
max_area: Maximum percentage of erased area wrt input image area.
min_aspect: Minimum aspect ratio of erased area.
mode: pixel color mode, one of 'const', 'rand', or 'pixel'
'const' - erase block is constant color of 0 for all channels
'rand' - erase block is same per-channel random (normal) color
'pixel' - erase block is per-pixel random (normal) color
max_count: maximum number of erasing blocks per image, area per box is scaled by count.
per-image count is randomly chosen between 1 and this value.
"""
def __init__(
self,
probability=0.5, min_area=0.02, max_area=1/3, min_aspect=0.3, max_aspect=None,
mode='const', min_count=1, max_count=None, num_splits=0, device='cuda'):
self.probability = probability
self.min_area = min_area
self.max_area = max_area
max_aspect = max_aspect or 1 / min_aspect
self.log_aspect_ratio = (math.log(min_aspect), math.log(max_aspect))
self.min_count = min_count
self.max_count = max_count or min_count
self.num_splits = num_splits
mode = mode.lower()
self.rand_color = False
self.per_pixel = False
if mode == 'rand':
self.rand_color = True # per block random normal
elif mode == 'pixel':
self.per_pixel = True # per pixel random normal
else:
assert not mode or mode == 'const'
self.device = device
def _erase(self, img, chan, img_h, img_w, dtype):
if random.random() > self.probability:
return
area = img_h * img_w
count = self.min_count if self.min_count == self.max_count else \
random.randint(self.min_count, self.max_count)
for _ in range(count):
for attempt in range(10):
target_area = random.uniform(self.min_area, self.max_area) * area / count
aspect_ratio = math.exp(random.uniform(*self.log_aspect_ratio))
h = int(round(math.sqrt(target_area * aspect_ratio)))
w = int(round(math.sqrt(target_area / aspect_ratio)))
if w < img_w and h < img_h:
top = random.randint(0, img_h - h)
left = random.randint(0, img_w - w)
img[:, top:top + h, left:left + w] = _get_pixels(
self.per_pixel, self.rand_color, (chan, h, w),
dtype=dtype, device=self.device)
break
def __call__(self, input):
if len(input.size()) == 3:
self._erase(input, *input.size(), input.dtype)
else:
batch_size, chan, img_h, img_w = input.size()
# skip first slice of batch if num_splits is set (for clean portion of samples)
batch_start = batch_size // self.num_splits if self.num_splits > 1 else 0
for i in range(batch_start, batch_size):
self._erase(input[i], chan, img_h, img_w, input.dtype)
return input
现在让我们详细看看 _erase 方法，了解其中的所有“魔力”。
def _erase(self, img, chan, img_h, img_w, dtype):
if random.random() > self.probability:
return
area = img_h * img_w
count = self.min_count if self.min_count == self.max_count else \
random.randint(self.min_count, self.max_count)
for _ in range(count):
for attempt in range(10):
target_area = random.uniform(self.min_area, self.max_area) * area / count
aspect_ratio = math.exp(random.uniform(*self.log_aspect_ratio))
h = int(round(math.sqrt(target_area * aspect_ratio)))
w = int(round(math.sqrt(target_area / aspect_ratio)))
if w < img_w and h < img_h:
top = random.randint(0, img_h - h)
left = random.randint(0, img_w - w)
img[:, top:top + h, left:left + w] = _get_pixels(
self.per_pixel, self.rand_color, (chan, h, w),
dtype=dtype, device=self.device)
break
上面的 _erase 方法接受输入 img (torch.tensor)、表示图像通道数的 chan，以及表示图像高度和宽度的 img_h 和 img_w。
我们根据 self.min_count 和 self.max_count 选择 count 的值。self.min_count 已设置为随机擦除块的最小数量，self.max_count 指的是随机擦除块的最大数量。大多数情况下，两者都默认为 1，也就是说，我们只向输入 img 添加一个随机擦除块。
接下来，我们随机选择随机擦除块的 target_area 和 aspect_ratio，并基于这些选择随机擦除块的 h 高度和 w 宽度值。
最后，我们替换图像中位置 img[:, top:top + h, left:left + w] 内的像素，其中 top 表示 y 轴上的随机整数值，left 表示 x 轴上的随机整数值。_get_pixels 是 timm 中实现的一个函数，它根据 timm 中的 Random Erase 模式返回要填充到随机擦除块内的随机值。
如果 mode=='pixel'，则 _get_pixels 返回一个正态分布，否则填充一个常数值 0。
